Manufacturer:Allen-Bradley
Model:1756-MVI
Type:ControlNet Bridge Module
Compatibility:Backwards compatible with earlier versions
Slots:Single-slot compatible
Backplane:1756 ControlLogix compatible
Ethernet Configuration:10/100 Mbps auto crossover detection
Ethernet Ports:Configuration and application ports
Memory Mapping:Up to 5000 16-bit registers
Software Support:ProSoft Configuration Builder (PCB) software
Network Segmentation:Enhanced network segmentation support
Data Transfer:Supports internal web

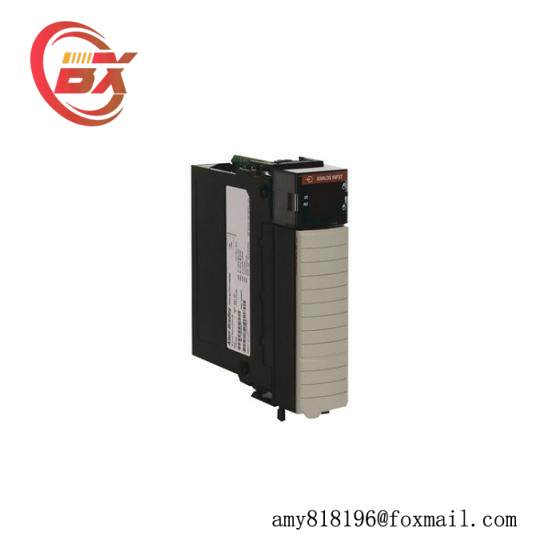

The Allen-Bradley 1756-MVI ControlNet Interface Module is an advanced networking solution tailored for industrial automation environments. This module ensures seamless integration with ControlLogix systems, optimizing network performance and enhancing operational efficiency.
Featuring backwards compatibility, it effortlessly supports previous versions while maintaining the latest communication standards. Its single-slot compatibility with the 1756 ControlLogix backplane allows for flexible installation within existing automation architectures.
With 10/100 Mbps auto crossover detection, the module ensures efficient data transmission rates, adapting automatically to network conditions for optimal performance. The Ethernet configuration and application port provide direct access to network resources, facilitating streamlined data management.
The user-definable module data memory mapping of up to 5000, 16-bit registers offers extensive customization options, allowing users to tailor the module to their specific needs. This feature, combined with the ProSoft Configuration Builder (PCB) software, enables a straightforward setup process, ensuring that both novice and experienced users can easily configure the module for their systems.
Furthermore, the internal web interface provides an intuitive way to monitor and manage the module’s operation, offering real-time insights into its performance and network interactions. This comprehensive set of features makes the Allen-Bradley 1756-MVI ControlNet Interface Module a critical component for modern industrial automation projects, promising enhanced reliability and performance.
