Input Voltage Range:324-528V rms, 3-phase
Nominal Voltage:360/480V
Input Frequency Range:47-63 Hz
Continuous Output Current:6.1 A
Peak Output Current:8.6 A
Efficiency:98%
Internal Shunt Resistor:115 Ohms
Continuous Output Power:3.9 kW
Peak Current (rms):15.3 A
Peak Output Current (0-pk):21.6 A
Capacitance:150 µF
Capacitive Rating:200,000 A (rms) symmetrical
PWM Frequency:8 kHz
Velocity Loop Bandwidth Frequency:500 Hz
Current Loop Bandwidth Frequency:1300 Hz
Power Dissipation:57-126 Watts
Weight:5.6 pounds (2.54 kilograms)

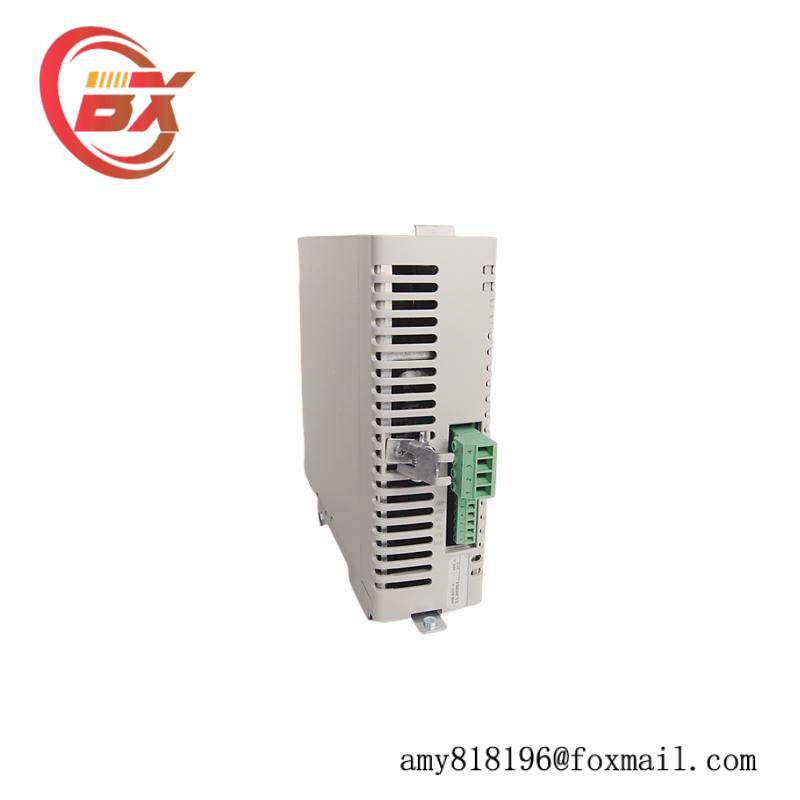

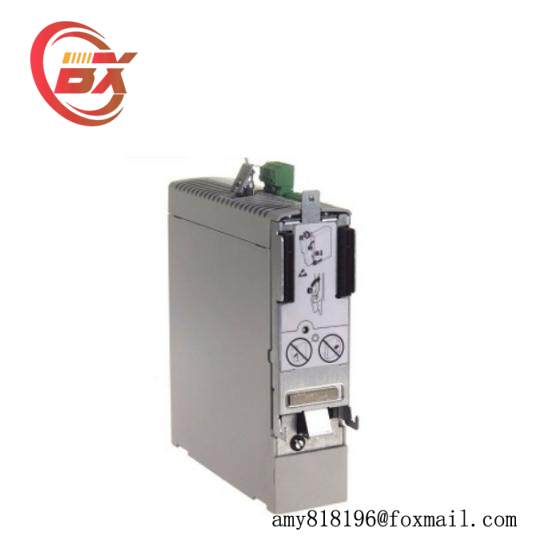

The Allen-Bradley 2094-BM01-S is a cutting-edge axis module designed to integrate seamlessly into the Kinetix 6000 Multi-Axis Drive Servo system. Engineered with precision, this module ensures reliable operation under demanding industrial conditions. Key design highlights include its efficient heat dissipation mechanism, which minimizes operational downtime, and robust safety features such as Safe Torque Off (STO), ensuring personnel safety. The 2094-BM01-S operates within a wide input voltage range of 324-528V RMS, 3-phase, making it versatile for various applications. With a continuous output power of 3.9 kW and peak current ratings of 8.6 A, it delivers exceptional performance and reliability. This module’s advanced safety features, including Safe Speed, Safe Maximum Speed, and Safe Maximum Acceleration Monitoring, significantly enhance operational safety. The embedded diagnostics provide detailed insights into operational health, facilitating quick fault identification and resolution. Ideal for manufacturing environments where precision and uptime are paramount, the Allen-Bradley 2094-BM01-S is a testament to modern industrial control solutions.
