Module Type:Compact Output
Number of Outputs:32
Output Configuration:Two groups of 16 channels each
Nominal Output Voltage:24VDC
Input Power:24V DC
Operating Voltage Range:10.2-26.4V DC
Wiring Configuration:Source-wired
Module Compatibility:MicroLogix PLC

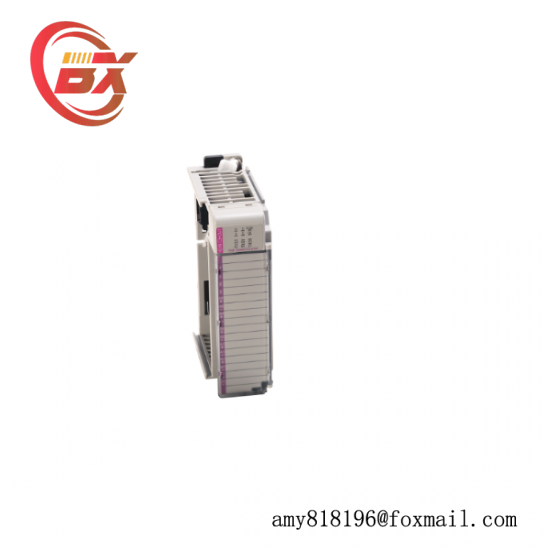

The 1769-OB32T Compact Output Module from Rockwell Automation is engineered to meet the stringent demands of modern industrial automation environments. Its compact design allows for easy integration into existing systems without compromising on functionality or performance. This module is equipped with 32 discrete outputs, providing ample capacity for controlling multiple actuators, solenoids, and other devices that require binary on/off control.
Each output channel is rated at 1A, capable of handling a variety of loads including motors, solenoids, and lighting. The SPST relay switches ensure reliable operation and long service life under demanding conditions. With a wide operating temperature range from -20°C to 70°C, this module can withstand harsh environments found in many industrial settings.
The RS-485 communication interface enables seamless integration with higher-level control systems, allowing for remote monitoring and control of processes. This feature is particularly advantageous in large-scale automation projects where centralized control and diagnostics are crucial.
Featuring an IP20 (NEMA 1) enclosure type, the 1769-OB32T is protected against dust and splashes of water, ensuring reliability in environments with moderate dust or moisture exposure. Its compact size and durable construction make it an ideal choice for space-constrained areas or applications requiring robust protection.
Installation is straightforward, with the module’s dimensions designed to fit into standard mounting configurations. This, combined with its lightweight construction, facilitates quick and efficient installation, minimizing downtime and streamlining system setup.
