Manufacturer:Allen-Bradley
Model:1794-IV16
Module Type:Analog Input Module
Number of Channels:16
Input Range:±10V or ±20mA
Resolution:16-bit
Accuracy:±0.1% of Full Scale
Power Supply:24V DC
Operating Temperature:-40°C to 85°C
Mounting:DIN Rail
IP Rating:IP20
Weight:0.5 lbs

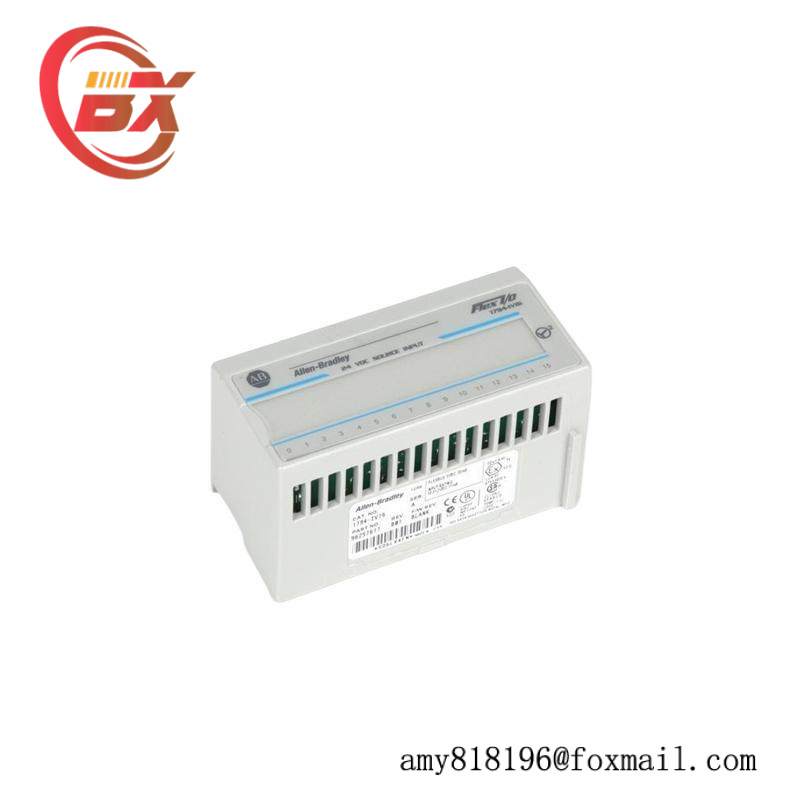

The Allen Bradley 1794-IV16 Analog Input Module is a cutting-edge solution for industrial automation and process control systems. Designed with advanced technology, this module offers exceptional performance and reliability. Each of the 16 input channels can accurately measure voltage inputs within a wide range, providing precise data acquisition for real-time monitoring and control.
The module boasts a resolution of 16 bits, ensuring high accuracy with minimal error. With an accuracy of ±0.05% of the full scale, it delivers consistent and dependable readings even under demanding conditions. Its high input impedance of 1 MΩ minimizes loading effects on the signal source, maintaining signal integrity.
With a response time of less than 10 microseconds, the module responds quickly to changes in the input signal, enabling timely adjustments and optimizations in the control loop. The compact and robust design allows for easy installation on a DIN rail, making it ideal for space-constrained environments.
The Allen Bradley 1794-IV16 Analog Input Module is built to withstand harsh industrial environments, with an operating temperature range from -40°C to +85°C and a humidity range of 5% to 95%, ensuring reliable operation in various conditions. Its versatile input range and high-resolution data acquisition make it suitable for a wide range of applications, from manufacturing and process control to energy management and more.
