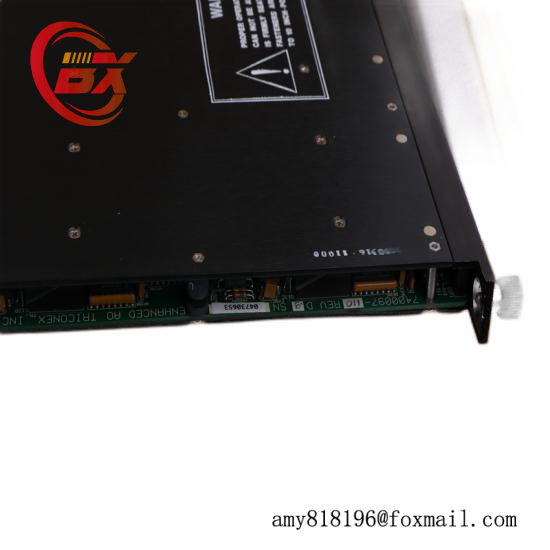

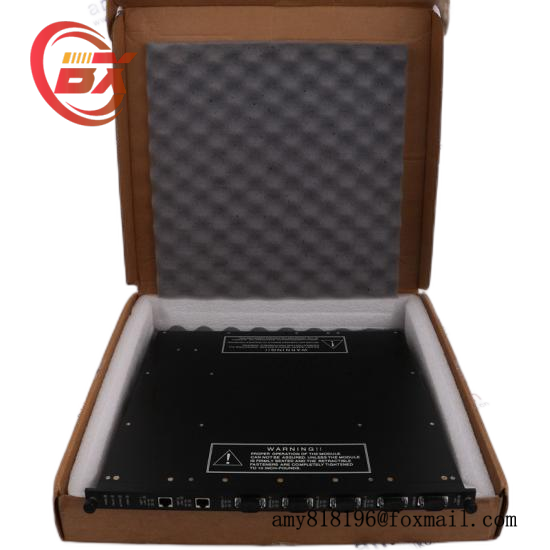

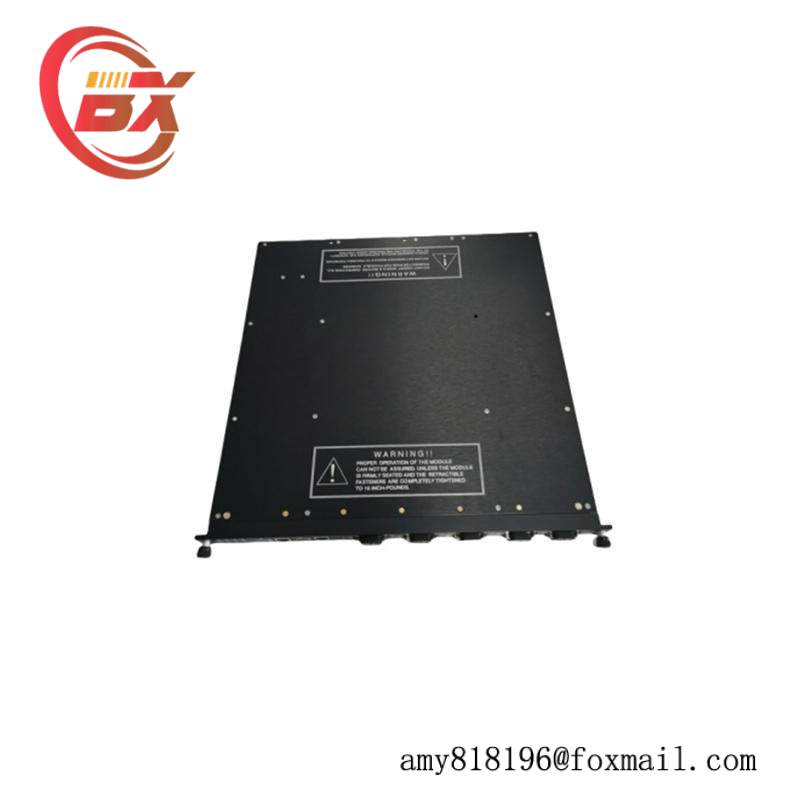

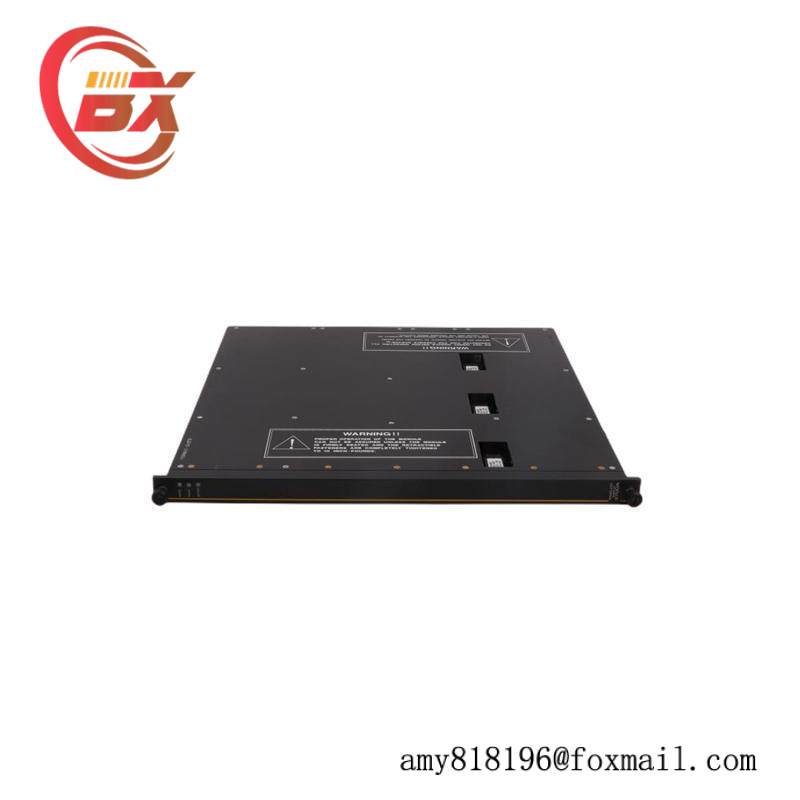

TRICONEX 3700A TMR Analog I/O Module

In stock

The TRICONEX 3700A Analog I/O Module is a high-performance, triple modular redundant (TMR) module designed for critical industrial automation systems. It offers reliable and precise analog input processing, suitable for demanding environments requiring robust and accurate data acquisition.

Model Type:Analog I/O Module

Model Number:3700a

Manufacturer:Triconex

Voltage Range:0-5V, + 6%

Technology:Triple Modular Redundancy (TMR)

Input Points:32, differential, DC coupled

Isolated Points:No

Input Update Rate:55 ms

Resolution:12 bits

Accuracy:< 0.15% of FSR, from 0° to 60°C

Input Resistance (load):30 MΩ (DC), minimum

Power-Off Resistance:30 KΩ (DC), typical

Common Mode Rejection:-80 dB (DC-100Hz), typical

Common Mode Range:-12V to +12V peak

Leg-to-Leg Isolation:200 KΩ, typical

Normal Mode Rejection @ 8Hz:-3 dB

Normal Mode Rejection @ 60Hz:-17 dB

Normal Mode Rejection @ 120Hz:-23 dB

The TRICONEX 3700A Analog Input Module is a high-performance component specifically designed for industrial automation systems. With its Triple Modular Redundancy (TMR) architecture, it ensures unparalleled reliability and fault tolerance, making it ideal for mission-critical applications.

This module features 32 differential input channels that are DC coupled, offering precise measurement and control. The resolution of 12 bits combined with accuracy within < .15% of full-scale range (FSR) from 0° to 60°C ensures consistent and reliable data acquisition.

The robust design of the TRICONEX 3700A allows for seamless integration into existing control systems, providing a reliable and efficient solution for industrial environments. Its common mode rejection ratio and leg-to-leg isolation further enhance its performance, ensuring minimal interference and noise.

Whether you’re implementing a new system or upgrading an existing one, the TRICONEX 3700A Analog Input Module is the perfect choice for your industrial automation needs.

TRICON 3700A
